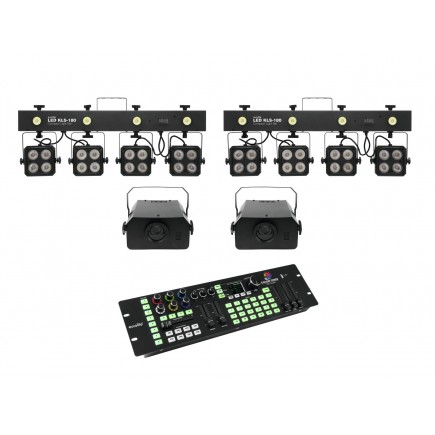

EUROLITE Set 2x LED KLS-180 + 2x LED WF-40 + DMX LED Color Chief Controller

2x Compact Light Set, 2x Projection effect for water reflections including DMX lighting desk

EUROLITE LED KLS-180 Compact Light Set

Bar with 4 RGBW spots and 4 white strobe LEDs, with QuickDMX connector (XLR)

• Crossbar with integrated DMX control unit and stand sleeve
• Ultra-light ideally suited for mobile use
• Ideal for bands, stages or solo entertainers
• Suited for installation on a speaker stand (not included) or truss
• Comes pre-assembled with practical transport bag
• 4 powerful 4in1 LEDs per spot provide for an exquisite RGBW color mix
• Strobe effect with 4 white 1 W LEDs
• Movable and tiltable spotlights
• Via DMX, each spot can be individually controlled
• DMX-controlled operation or stand-alone operation with Master/Slave function
• Supports QuickDMX - the wireless DMX-system from Eurolite
• Built-in phantom fed socket for QuickDMX receiver (see accessories)
• Functions: RGBW color mixture, color presets, built-in programs, strobe effects with variable speed, dimmer, Master/Slave operation
• Addressing and setting via control panel with 4-digit LED display
• Additional controlling possibility via the EUROLITE IR-7 remote control, included in delivery
• Black lacquered metal version with movable mounting bracket
• IEC terminals for power linking up to 8 units
• LED: Spot 4 x separate controlling each with 4 x high-power 8 W 4in1 QCL RGBW (homogenous color mix)
• LED: Strobe effect separate controlling 4 x high-power 1 W CW
• Can be operated in 3; 4; 8; 21 CH mode
• The device is cooled by passive convection
• Controlling by Stand-alone; DMX; IR remote control; Sound to light via Microphone; QuickDMX via 5-pin XLR (M) mounting version (optional)
• Is in EASY SHOW; EUROLITE LED PC-Control 512 software already preprogrammed
• Flicker-free projection

EUROLITE LED WF-40 Water Effect

Projection effect for water reflections, with RGBW color mixing & DMX

• Produces projections like moving water
• Built-in effect wheels offer a lovely water effect
• Equipped with a high-power 40 W RGBW LED (COB)
• Master dimmer
• Color presets
• Preset color temperatures
• Built-in programs
• Stepless RGBW color mixture
• Strobe effect with adjustable speed
• Random strobe effect
• Addressing via control panel with 4-digit LED display
• DMX control via every standard DMX controller
• Manual focus
• Switch-mode power supply for operation between 100 and 240 volts
• Ready for connection with power cord and safety-plug
• LED: 1 x COB (chip-on-board) 40 W 4in1 QCL RGBW
• Can be operated in 9 CH mode
• The device is cooled by passive convection
• Controlling by DMX; Sound to light via Microphone; Stand-alone; Master/slave function
• Is in Light J Software; EUROLITE LED PC-Control 512 software; EASY SHOW already preprogrammed
• Effect: Single Beam

EUROLITE DMX LED Color Chief Controller

DMX lighting desk with innovative control concept for LED spotlights

• Easy control of LED spotlights with up to 6 colors, light bars as well as simple lighting effects
• For 8 devices or device groups, each with up to 4 segments
• Each device can occupy up to 30 channels
• Quick and easy programming
• Eurolite KLS systems and LED spotlights already in the library
• Additional fixtures can be configured manually
• 8 color effects directly selectable
• 3 additional channels available per fixture (e.g. for rotations)
• Color wheel selection and simulation
• 24 memory spaces for scenes and chases
• Several chases can be run simultaneously
• USB port for data storage of lighting programs
• Sound control via audio signal or TAP button
• Master dimming, fade time and run time easily adjustable
• 3-pin XLR connector
• Firmware update via USB
• Desktop console
• Programmable 24 sequencens
• Can transmit up to 240 DMX channels
• Controlling by DMX; Sound to light via RCA (f) mounting version; Sound to light via Microphone
• (19") 48.3 cm rack installation 3 U
