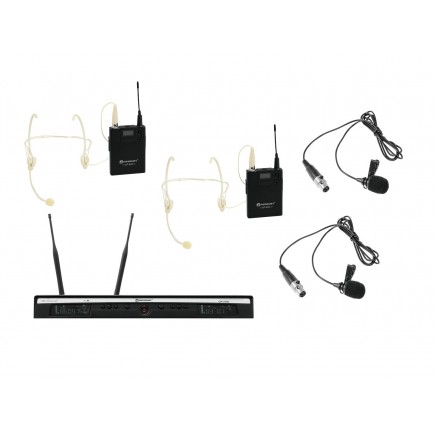

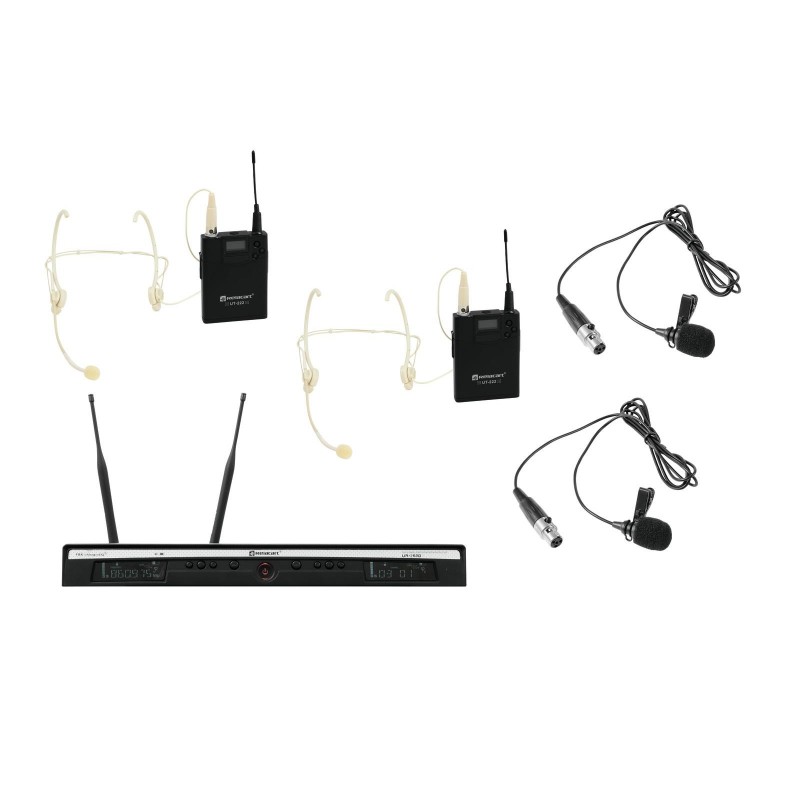

RELACART Set UR-260D Bodypack with Headset and Lavalier

True diversity wireless receiver (DSP and PC software) with 2 bodypacks + headsets + lavalier mics

RELACART UR-260D 2-channel UHF Receiver

True diversity wireless receiver with DSP for microphone modeling and PC software

• 2-channel multifrequency wireless receiver with 24-bit processor for high-end audio quality
• Integrated MagicEQ enables amazing microphone modeling of hand-held microphones
• Choose from 7 presets based on popular microphone models (e835, beta58, e935, D5, SM57, N/D767a, SM58) and 3 user-definable presets
• Integrated Feedback Killer effectively eliminates feedback, providing maximum gain and increased clarity on every microphone
• DSP programming and management via Ethernet port and intuitively operated PC software
• High-quality antenna diversity reception
• 2 license-free frequency ranges: 823-832MHz (Duplex Gap)and 863-865MHz
• 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
• Parallel operation of up to 9 wireless channels is possible without any interference
• Pilot tone technology (PLL) and noise squelch for interference-free operation
• Automatic frequency scan (AFS) finds interface-free channels
• Infrared interface for easy and error-free channel transfer to transmitters via infrared signal
• LCDs for battery status of the transmitters, antenna A/B, RF reception level, AF audio level and frequency
• Multiple units can be linked with network cables
• Lock function avoids accidental changing of settings
• XLR and 6.3 mm jack output
• 2 detachable BNC antennas allow for use with the R-14D antenna divider
• Matching hand-held microphone (UR-260D) optionally available
• Matching pocket transmitter UT-222 optionally available
• Delivery includes jack cable and power unit
• Durable metal housing
• 483 mm rack installation possible with supplied mounting brackets
• License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
• Digital signal processor 96kHz, 24 bit
• Use a operating range up to 80m
• The device can be connected via RJ-45 (F) mounting version to the PC in connection with RELACART Magic EQ software
• Desktop console housing 1 U; (19") 48.3 cm rack installation (provided)

RELACART UT-222 Bodypack with HM-800S Headset

Bodypack transmitter with PLL multifrequency transmitter, 823-832 + 863-865 MHz

• Pocket transmitter for receivers UR-222S/D and UR-260D
• Durable aluminum alloy housing, applicable for touring
• Incl. headset microphone HM-800S
• Lavalier microphone optional
• Pilot tone technology (PLL) for interference-free operation
• 2 license-free frequency ranges: 823-832MHz (Duplex Gap)and 863-865MHz
• 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
• Parallel operation of up to 9 systems is possible without any interference
• Infrared interface for easy and error-free synchronization with the receiver via infrared signal
• OLED for battery status, frequency, channel and group
• Mute function
• Adjustable input gain
• RF output power Hi/Low adjustable
• Lock function avoids accidental changing of settings
• Long battery life for up to 11 hours continuous operation
• License-free and approved in the EU (please check on a country-by-country basis)

transmitter

• Use a operating range up to 80m

Microphone

• Polar pattern: Omnidirectional

RELACART LM-C420 Lavalier unidirectional

Inconspicuous electret lavalier microphone

• For attaching to the user's tie, shirt or collar
• Provides high-quality voice pickup for public speaking, theater, or business presentations
• Connection via 4-pin mini XLR plug
• Delivery includes foam windscreen
• Polar pattern: Cardioid
