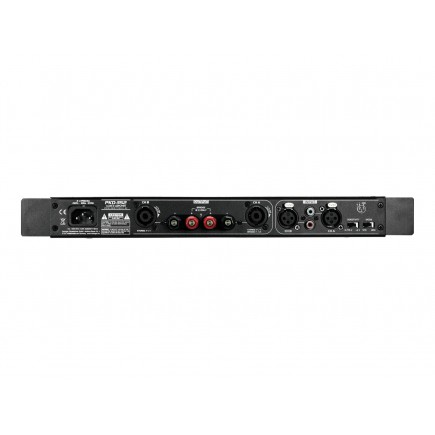

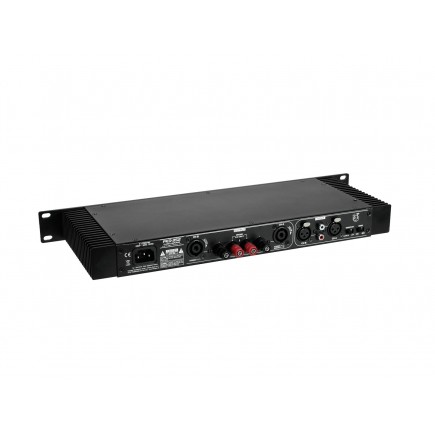

OMNITRONIC PKD-352 Class D Studio Amplifier
OMNITRONIC PKD-352 Class D Studio Amplifier
2-channel studio amplifier with SMPS, 2 x 175 W / 4 ohms, 2 x 100 W / 8 ohms
- Low weight and height due to integrated switch mode power supply
- 2 operating modes can be selected (stereo or bridged)
- 2 level controls
- Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
- Speaker outputs via lockable Speaker plugs
- The device is cooled by passive convection cooling
- (19") 48.3 cm rack installation 1 U
Package contents
- 1 x amplifier, 1 x power cord, 1 x user manual
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 70 W 1/8 power |
| Protection class: | Protection class I |
| Output power: | 2 x 175 W RMS (4 ohms) 2 x 100 W RMS (8 ohms) 350 W RMS bridged (8 ohms) |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Cable length: | 1 m detachable |
| Device fuse: | 4 x 10 mm, T 3,15 A Fuse fix on board |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >105 dB |
| THD: | <0,05 % at 1 kHz |
| Cooling: | Passive convection cooling |
| Impedance: | Input: 20 kOhm , bal. Input: 10 kOhm , unbal. |
| Gain: | 38 dB |
| Housing color: | Black |
| Circuitry: | Class D |
| Slew rate: | 20 V/s |
| Damping factor: | >300 |
| Control elements: | Power switch, level control per channel, mode switch (stereo/bridged), Input sensitivity switch |
| Controls: | Softstart; DC voltage; VHF; current limiting; short-circuit; limiter; overheat |
| Status LED: | Power, signal, clip |
| Connections: | Input: line via 2 x 3-pin XLR Input: line via 2 x RCA (F) mounting version Output: speaker via 2 x speaker built-in socket (F) Output: speaker via 2 x screw terminal |
| Input sensitivity: | 0,775 V; 1,4 V , switchable |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Dimensions: | Width: 48,3 cm Depth: 19 cm Height: 4,4 cm |
| Weight: | 2,81 kg |
