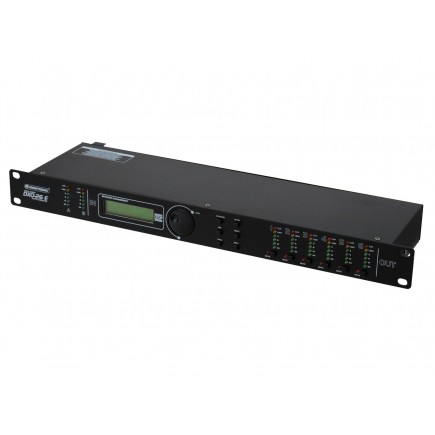

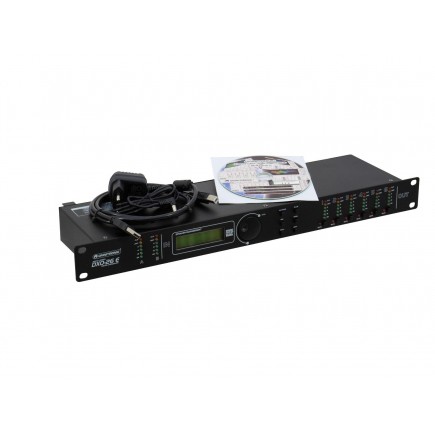

OMNITRONIC DXO-26E Digital Controller
OMNITRONIC DXO-26E Digital Controller
Digital stereo active crossover with 2 inputs and 6 outputs, incl. software
- Flexible routing configurations for all standard mono and stereo output operating modes
- 2 analog inputs and 6 analog outputs (XLR)
- Active frequency filter types (Bessel, Butterworth and Linkwitz-Riley) with slopes up to 24 dB/octave split up the audio signal into different frequency bands
- Incl. software editor (for PC and Mac) for remote control via computer through USB interface: store, transfer, and manage your presets
- Up to 30 user presets storable in the device via software
- Alphanumeric LCD screen with 2 lines of 16 characters each
- Input sensitivity digitally adjustable
- Inputs and outputs with 4-digit LED level meter as well as clip and limit LED indicator
- Mute switch with LED indicator per output
- 7-band parametric EQ per output
- Up to 7 ms signal delay adjustable for the outputs
- Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
- Switchable phase
- Lock function for protecting the program settings
- Windows XP, Vista, 7, 10 and Mac OS X 10.5.8 and better
- Digital signal processor
- The device can be connected via USB to the PC in connection with DXO Software
The firmware can be updated via the PC connection - (19") 48.3 cm rack installation 1 U
| Power supply: | 100-240 V AC, 50/60 Hz 6 V DC 800 mA |
| Power connection: | Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided) |
| Frequency range: | 10 - 30000 Hz |
| THD: | <0,005 % at 1 kHz |
| DSP: | Digital signal processor |
| Crossover frequency: | 20-20000 Hz |
| Impedance: | Input 10 kOhm Output 50 Ohm |
| Gain: | Output: -50 dB to +12 dB |
| Filter: | Linkwitz-Riley; Butterworth; Bessel; 6db/oct; 12db/oct; 18db/oct; 24db/oct |
| Delay: | 0 - 5 ms |
| Dynamic range: | Input: 114 dB Output: 110 dB |
| Sample rate: | 67 kHz |
| Connections: | Input: 2 x line via 3-pin XLR Output: 6 x line via 3-pin XLR |
| Max. level: | Input: +22 dBu Output: +9 dBu |
| USB port: | Typ B |
| PC connect: | DXO Software via USB, firmware can be updated |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Dimensions: | Width: 48,3 cm Depth: 12,8 cm Height: 4,45 cm |
| Weight: | 1,77 kg |
