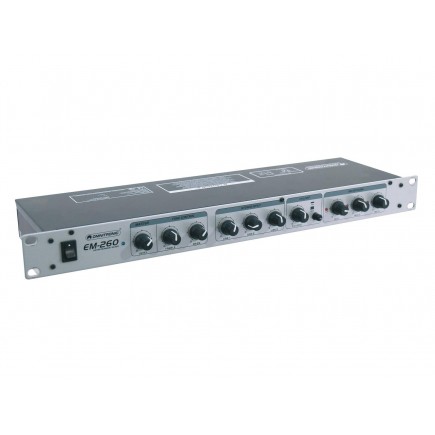

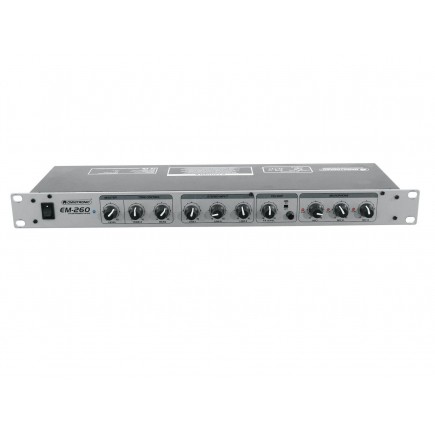

OMNITRONIC EM-260 Entertainment Mixer
OMNITRONIC EM-260 Entertainment Mixer
OMNITRONIC Entertainment Mixer SeriesThe modern entertainment industry, especially hotels, bars or theme parks, requires very high standards in quality and features for sound devices.The OMNITRONIC EM-series is especially designed for this industry and offers the highest flexibility and quality in very small mixer casings.The EM-series offers a variety of connection possibilities and also convinces by an ergonomic design and easy use.The special housing design and the state-of-the-art construction are further reasons which make the EM-series the first choice for installers.
6-channel microphone/line mixer
- 6 inputs (3 x mic/line and 3 x line) for mixing to 1 stereo output
- Ideal e.g. for karaoke when microphones need to mixed with CDs
- 3 mono input channels mic/line (XLR, bal.), switchable
- 3 stereo line input channels (RCA)
- Clip LED for each microphone channel
- Each microphone input with optional 12 V phantom power
- FX send/return with FX level control
- Stereo master out (6.3 mm jack) with 2-band equalizer (highs and lows) and level control
- Stereo record output (RCA)
- Rack installation, 1 U
- (19") 48.3 cm rack installation 1 U
Power supply: | 115/230 V AC, 50/60 Hz |
Power consumption: | 35 W |
Protection class: | Class I |
Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
Frequency range: | 20 - 20000 Hz |
Phantom power: | 12 V DC |
Housing color: | Silver |
Control elements: | Phantom power switch, power switch, FX send/returne control |
Status LED: | Power, clip |
Connections: | Input: 3 x mic/line via 3-pin XLR Input: 3 x line via stereo RCA Input: 2 x FX via 6.3 mm jack socket (mono) mounting version Output: 1 x rec. via stereo RCA Output: 2 x master via 6.3 mm jack socket (mono) mounting version Output: 1 x FX via 6.3 mm jack socket (stereo) mounting version |
Chanals: | Input chanel: 3 x stereo via RCA, channel control via Rotary dial, 2-band tone control EQ 100Hz/10kHz Microphon chanal: 3 x mono with Mic-line switch via XLR, channel control via Rotary dial Master output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial |
Max. level: | Input: Microphone +14 dB Input: line +24 dB |
Material: | Metal |
Color: | Silver |
Housing design: | (19") 48.3 cm rack installation 1 U |
Dimensions: | Width: 48,3 cm Depth: 12,3 cm Height: 4,45 cm |
Weight: | 2,20 kg |
