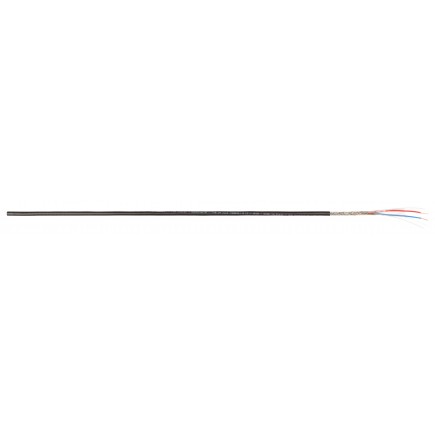

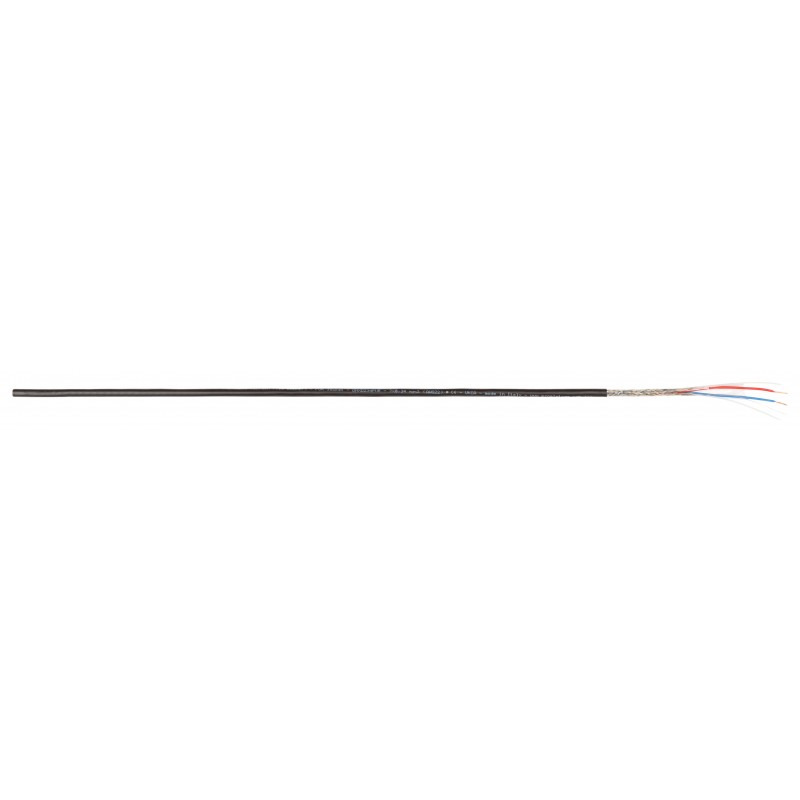

Constant impedance (120 Ohm) - DMX - 1 audio balanced twisted pair (2 x 0,34 mm2) cable with small diameter flexible flame resistant polyurethane overall Jacket(DMXD234PUR).Black colour. Made in Italy

DMX cables are especially designed to connect lighting mixers using DMX data transmission to any device using this protocol (colour changer, scanner). Cables are made in conformity with the DMX512 standard featuring a 120 Ohm nominal impedance. Thanks to their small overall diameter, it is possible to use these cables also with XLR low profi le connectors. They can also be used for standard audio connections with excellent results regarding the transmission and purity of the signal.

• Application fields: Standard DMX connections / Light/colour changer scanner connections / Audio connections - Indoor use and fixed installation
• Conductors: Stranded bare copper wires IEC 60228 class 5 - 19x0,15 mm
• Insulation: Polyolephine dieletric red, blue - Ø= 1,9 mm approx. Elements laid up together in concentric layer with filler and mylar overlapping foil
• Shield: tinned copper braid coverage >90%
• Jacket: Polyurethane compound matt black - Ø= 5,8 mm approx.
• Colors:Black
• Electrical resistance: 56 Ohm/Km (conductor) @ 20°C - 17 Ohm/Km (Shield) @ 20°C
• Electrical capacitance: 40 pF/m (conductor/conductor) @ 1 KHz 71 pF/m (conductor/Shield) @ 1 KHz
• Nominal impedance: 120 Ohm
• Operating temperature: -20°C / +80°C (@ fixed installation )
• Working tension:
• < 50 V AC
• < 75 V DC
• Weight: 47 Kg/Km
• Minumum bending radius: 90 mm
• Printing on the cable: >>> PROEL  Professional 120 Ohm DMX512 cable (Oxigen Free Copper) PUR Jacket - DMXD234PUR - 2x0,34 mm2 (AWG22) • CE - UKCA - made in Italy - www.proelstage.com >>>
• Standard reference: Low Voltage European Directive No. 2014/35/EU
• Packaging:
• 100 m carton reel
• 500 m wooden reel (DMXD234PUR500)
