OMNITRONIC Set MOM-10BT4 PA System + CD Player + DAD
OMNITRONIC Set MOM-10BT4 PA System + CD Player + DAD

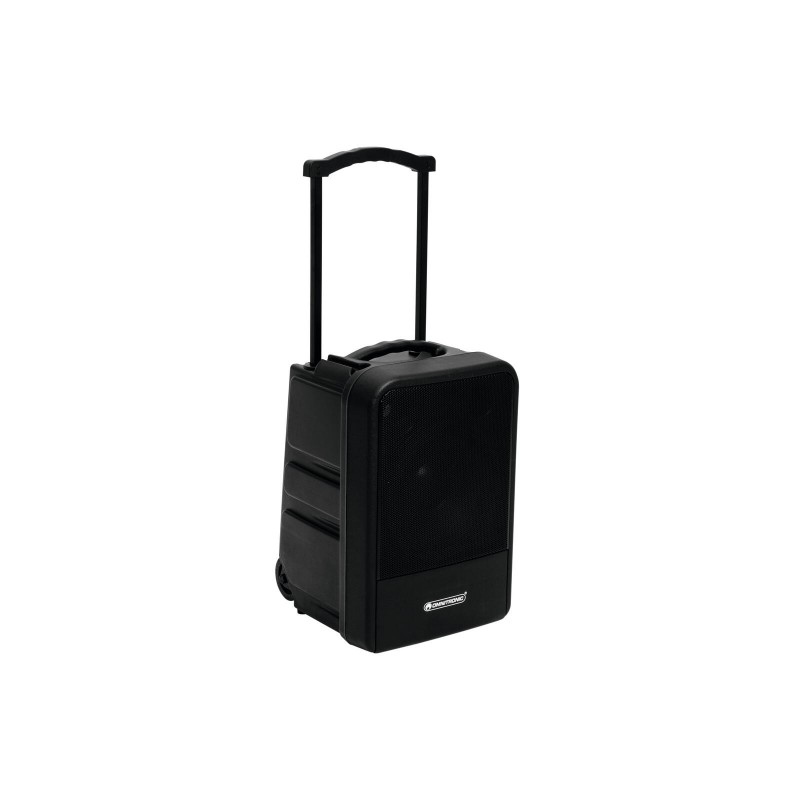

OMNITRONIC MOM-10BT4 Modular Wireless PA System
Mobile PA system with battery operation and different equipment options
- Wireless PA system with modular structure for maximum flexibility
- Wireless audio link operation of several MOM-10BT4 systems for larger events
- Flexible use: mono operation with several systems or stereo operation with 2 systems linked together
- High-power 2-way speaker system with 25 cm (10") woofer
- 3 extension slots for retrofitting wireless receivers
- 1 extension slot for retrofitting an audio link module
- 1 extension slot for retrofitting a CD/MP3 player with SD slot and USB port
- Microphone inputs with adjustable reverb effect
- Line input (XLR und Cinch), switchable stereo/mono
- Microphone inputs, line input and Bluetooth module with separate volume controls
- Mixer section with common master control and 2-band tone control
- Stereo/mono switch for the master signal during audio link operation
- Additional XLR output for linking several systems via cable
- Switchable microphone priority circuit - ideal for presentations
- Ergonomic design
- Integrated automatic charging of the battery and status indicator
- Control via Bluetooth
- Supported codecs: AAC, SBC
- 2.4 GHz license-free worldwide
- Black metal grille
- Rugged carrying handle
- Trolley
- For application areas such as: Theater; mobile use; wedding/gala/events; product presentations and lectures
battery pack
- Battery pack must be ordered separately
- Cordless, flexible and versatile
- Battery operation up to 8h
ACCESSORY Battery 12V/7000mAh
Maintenance-free lead acid battery
- High energy densitiy
- Long life
- Sealed leak proof construction
- Cordless, flexible and versatile
OMNITRONIC MOM-10BT4 CD Player with USB & SD
CD/MP3 player mounting module with SD card slot and USB port
- For retrofitting the MOM-10BT4 modular PA system
- Slot-in drive
- SD(HC) card slot
- Control via IR remote control
OMNITRONIC DAD Receiver Module
Receiver module for UHF frequencies (microphone, bodypack + audio link module)
- For installation into the DAD-4RX 4-channel receiver housing
- For retrofitting the MOM-10BT4 modular PA system
- For wireless audio transmission with DAD transmitter modules and other components
- 16 selectable UHF frequencies (823-832 and 863-865 MHz)
- LEDs for carrier and audio signal
- Operating range up to 30m with line-of-sight
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- UHF 863 - 865 MHz License-free and approved in Europe
OMNITRONIC DAD Wireless Microphone
Dynamic hand-held microphone with 16 UHF frequencies (823-832 & 863-865 MHz)
- 16 selectable UHF frequencies (823-832 and 863-865 MHz)
- Battery status indicator
- Polar pattern: Cardioid
- Operating range up to 30m with line-of-sight
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- UHF 863 - 865 MHz License-free and approved in Europe
OMNITRONIC DAD Bodypack Transmitter
Bodypack transmitter with lavalier microphone
- 16 selectable UHF frequencies (823-832 and 863-865 MHz)
- Sensitivity adjustable
- LED indicator for battery capacity
- Belt clip
- Headset microphone and lavalier microphone available as accessories
- Operating range up to 30m with line-of-sight
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- UHF 863 - 865 MHz License-free and approved in Europe
microphone
- Polar pattern: Cardioid
OMNITRONIC DAD Audio Link Module
Transmitter module for wireless audio transmission to DAD receiving units
- For installation into the DAD-4RX 4-channel receiver housing
- For retrofitting the MOM-10BT4 modular PA system
- Wireless audio transmission to DAD receiving units
- 16 selectable UHF frequencies (823-832 and 863-865 MHz)
- LED display for indicating selected channel
- Detachable rod antenna
- Operating range up to 30m with line-of-sight
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- UHF 863 - 865 MHz License-free and approved in Europe
Scope of delivery
1 x OMNITRONIC MOM-10BT4 Modular Wireless PA System
- 1 x compact cabinet speaker
- 1 x antenna
- 1 x power cord
- 1 x user manual
- 1 x declaration of conformity
1 x OMNITRONIC MOM-10BT4 CD Player with USB & SD
- 1 x device
- 4 x screw
- 1 x remote control
- 1 x user manual
2 x OMNITRONIC DAD Receiver Module
- 1 x receiver
- 1 x user manual
- 1 x declaration of conformity
2 x OMNITRONIC DAD Wireless Microphone
- 1 x transmitter
- 1 x user manual
- 1 x declaration of conformity
- 1 x screwdriver
2 x OMNITRONIC DAD Bodypack Transmitter
- 1 x transmitter
- 1 x microphone
- 1 x USB cable
- 1 x user manual
- 1 x declaration of conformity
1 x OMNITRONIC DAD Audio Link Module
- 1 x transmitter
- 1 x antenna
- 1 x user manual
- 1 x declaration of conformity
| Weight: | 26.05 kg |
| OMNITRONIC MOM-10BT4 Modular Wireless PA System | |
| Power supply: | 230 V AC, 50 Hz Or 12V DC |
| Power consumption: | Max. 100 W |
| Output power: | Max. 160 W 80 W RMS |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) Battery/battery pack (not included) |
| Frequency range: | 50 - 18000 Hz |
| THD: | <1 % at 1 kHz |
| Control: | Bluetooth |
| Bluetooth: | Version: 4.0 Profiles: A2DP |
| Bluetooth device name: | OMNITRONIC |
| Supported codecs: | AAC, SBC |
| Frequency band: | 2.4 GHz |
| Attachment system: | Flange: Ø 35mm |
| Circuitry: | Class D |
| Status LED: | Charge status indicator, pairing |
| Connections: | Input: line via 1 x stereo RCA Input: line via 1 x 3-pin XLR Input: microphone via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: line via 1 x 3-pin XLR |
| Input channels: | 2 x mono via Combination socket (XLR/jack), channel control via rotary dial 1 x mono + stereo via XLR or RCA, channel control via rotary dial |
| Speaker: | 1 x woofer 10" Tweeter 1" |
| Type of speaker: | Compact cabinet speaker |
| Type of construction: | Vented |
| Carrying handle: | 1 pc/pcs |
| Transport aid: | Trolley |
| Material: | Plastic |
| Color: | Black |
| Dimensions: | Width: 33.5 cm Depth: 37.5 cm Height: 53.5 cm |
| Weight: | 15.75 kg |
| Battery pack | |
| Battery pack type: | 2 x lead 12 V, 7000 mAh, 84 Wh |
| Battery pack: | Battery operation up to 8h Recharging time 5h |
| ACCESSORY Battery 12V/7000mAh | |
| Battery pack type: | 1 x lead 12 V, 7000 mAh, |
| Connections: | 6.3 mm flat plug |
| Dimensions: | Width: 16.1 cm Depth: 6.5 cm Height: 10 cm |
| Weight: | 2.33 kg |
| OMNITRONIC MOM-10BT4 CD Player with USB & SD | |
| Control: | IR remote control |
| Audio player: | USB + SD + CD player |
| CD player drive: | Slot in-single CD drive |
| Music format: | CD, CD-R, CD-RW, CD-DA, MP3; WMA, WAV |
| Available storage media: | USB devices/SD cards max. 32GB (FAT 32) |
| Dimensions: | Width: 16 cm Depth: 16.5 cm Height: 6.8 cm |
| Weight: | 0.97 kg |
| Device | |
| Power supply: | 12V DC 1000 mA |
| Power connection: | Fixed power supply cord with special plug |
| Remote control | |
| Battery: | 1 x button cell 3.0 V CR2025 lithium manganese built-in |
| OMNITRONIC DAD Receiver Module | |
| Type: | Receiver |
| Power supply: | 12V DC 170 mA |
| Number of channels: | 1 |
| Frequency range: | 40 - 18000 Hz |
| S/N ratio: | >80 dB |
| THD: | <0.1 % at 1 kHz |
| Sensitivity: | -95 dB |
| Range: | Range up to 30m with line-of-sight |
| Frequency band: | UHF 823 - 832 MHz; UHF 863 - 865 MHz |
| Frequency stability: | ± 0.001 % |
| Frequency selection: | 16 switchable frequencies |
| Control elements: | Frequency selector switch, level control, Squelch control |
| Status LED: | Power, signal, level meter |
| Color: | Black |
| Dimensions: | Width: 7.1 cm Depth: 13.9 cm Height: 3 cm |
| Weight: | 0.09 kg |
| OMNITRONIC DAD Wireless Microphone | |
| Type: | Hand-held transmitter |
| Power supply: | 3V DC |
| Power connection: | Battery/battery pack |
| Capsule type: | Dynamic |
| Polar pattern: | Cardioid |
| Battery: | 2 x Mignon (AA) (not included) |
| Frequency range: | 50 - 18000 Hz |
| Range: | Range up to 30m with line-of-sight |
| Frequency band: | UHF 823 - 832 MHz; UHF 863 - 865 MHz |
| Frequency stability: | ± 0.001 % |
| RF power output: | 10 mW |
| Frequency selection: | 16 switchable frequencies |
| Switch: | On/off/mute switch |
| Material: | Plastic |
| Color: | Black |
| Dimensions: | Length: 26.5 cm Diameter: Ø 4.9 cm |
| Weight: | 0.18 kg |
| OMNITRONIC DAD Bodypack Transmitter | |
| Type: | Pocket transmitter |
| Power supply: | 3V DC Or 5V DC |
| Power connection: | Battery/battery pack Mains input via USB C (W) mounting version power supply cord for USB A mains connection (provided) |
| Battery: | 2 x Mignon (AA) (not included) |
| Frequency range: | 50 - 18000 Hz |
| Range: | Range up to 30m with line-of-sight |
| Frequency band: | UHF 823 - 832 MHz; UHF 863 - 865 MHz |
| Frequency stability: | ± 0.01 % |
| RF power output: | 10 mW |
| Frequency selection: | 16 switchable frequencies |
| Control elements: | Level control, frequency selector switch |
| Connections: | Input: microphone via 1 x 3-pin XLR (M) mounting version Input: line via 1 x 3.5 mm jack (stereo) mounting version |
| Switch: | On/off switch |
| Material: | Plastic |
| Color: | Black |
| Dimensions: | Width: 6.7 cm Depth: 2.3 cm Height: 11 cm |
| Weight: | 0.12 kg |
| Microphone | |
| Type: | Lavalier microphone |
| Power supply: | 1.5-10V DC |
| Power connection: | Mains input via Mini XLR (F) 3-pin |
| Cable length: | 1 m |
| Capsule type: | Condenser |
| Polar pattern: | Cardioid |
| Sensitivity: | -37 dB |
| Material: | Metal |
| Color: | Black |
| Weight: | 0.018 kg |
| USB cable | |
| Cable construction: | Power cable |
| Cable length: | 0.8 m |
| Plug A: | 1 x USB, type A |
| Plug B: | 1 x USB C (M) |
| OMNITRONIC DAD Audio Link Module | |
| Type: | Transmitter |
| Power supply: | 12V DC 150 mA |
| Number of channels: | 1 |
| Range: | Range up to 30m with line-of-sight |
| Frequency band: | UHF 823 - 832 MHz; UHF 863 - 865 MHz |
| Frequency stability: | ± 0.001 % |
| RF power output: | 10 mW |
| Frequency selection: | 16 switchable frequencies |
| Control elements: | Frequency selector switch, level control |
| Status LED: | Power, signal |
| Connections: | Antenna via 1 x BNC (F) |
| Color: | Black |
| Dimensions: | Width: 7.1 cm Depth: 13.9 cm Height: 3 cm |
| Weight: | 0.11 kg |
