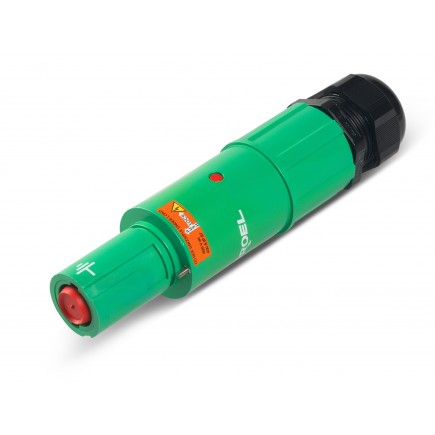

PROEL STAGE PFVG PROEL STAGE 8032496026938 Italy ST 1 1 Discontinued 1 0 0 HAWA 92099400 pPanel mount socket. Colour: Green. Pha

Proel Lock is the Proel connector series used for safe and reliable connection in large scale power distribution systems. Available in four formats (Panel Drain, Panel Source, Line Drain, Line Source), includes three phases (L1- L2-L3), earth (G) and neutral (N). Typically used for applications in motors, generators, power distribution boxes as well as general heavy industrial use.

• Duel locking system to prevent accidental disconnection
• Current rating: 400A
• Highly resistant thermoplastic body guarantee a high degree of insulation and protection against fire, oil, acid, water and impact damage
• Fingerproof front contacts (source type) prevent accidental touching
• Active spring loaded elements allow simple insertion and provide multipin contact points to reduce power loss
• Each connector type is individually keyed to prevent accidental crossmating
• Watertight connection when coupled.
• Formats: panel drain, panel source, line drain, line source
• Contacts: 120mm2, threaded ending (300mm2 crimp ending)
• Max. current rating: 400A (660A)
• Min. insulating resistance: > 5 MW at 500 Vdc
• Working temperature: (-30 ÷ +125)°C
• IP rating (coupled connector): IP67
• Flammability: UL94-V0
