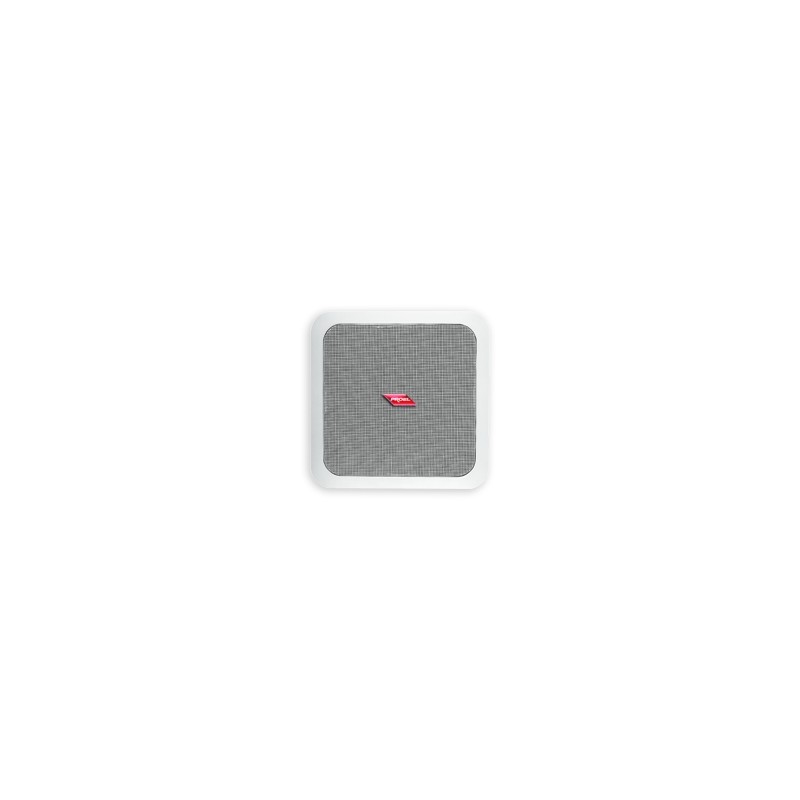

PROEL CA PA CSE5X PROEL CA China ST 1 0 Discontinued 1 0 0 HAWA 85444290 Easy embedded installation, HF 2-way speakers. COMMON

COMMON FEATURES Easy embedded installation, HF 2-way speakers, with internal transformer, dust protection grille and ABS supporting structure. CSE5X and CSE6X use respectively 5' and 6,1?2' woofers with coaxial tweeter. In order to obtain a very high reliability in the most demanding applications, the tweeter employs an electronic protection circuit. These speakers have been designed for high quality paging and music diffusion. A metal enclosure for wall installation is available as an accessory.[Type: Built-in Speaker]
[Speaker/s: W: 5'' T: 1'']
[RMS power: 30/10/5/2/1W]
[Constant voltage binding: 100/70V]
[Constant impedence binding: 8 ohm - 45W]
[Frequency response: 50Hz - 20KHz (-10dB)]
[SPL (1W/m):87 ]
[SPL MAX (Pmax @ 1m):102 ]
[Coverage Angle 1KHz/4KHz (-6dB): 150º / 75º]
[Controls: POWER LEVEL / LOW IMPEDANCE SWITCH]
[Construction materials: ABS / Steel]
[Colour: White (RAL 9010)]
[Dimensions (W x H x D): 170 x 170 x 63mm]
[Weight:1.3 lb ]
[Fixing system: Recessed ceiling/wall]
[Mounting Hole: 143 x 143mm]
